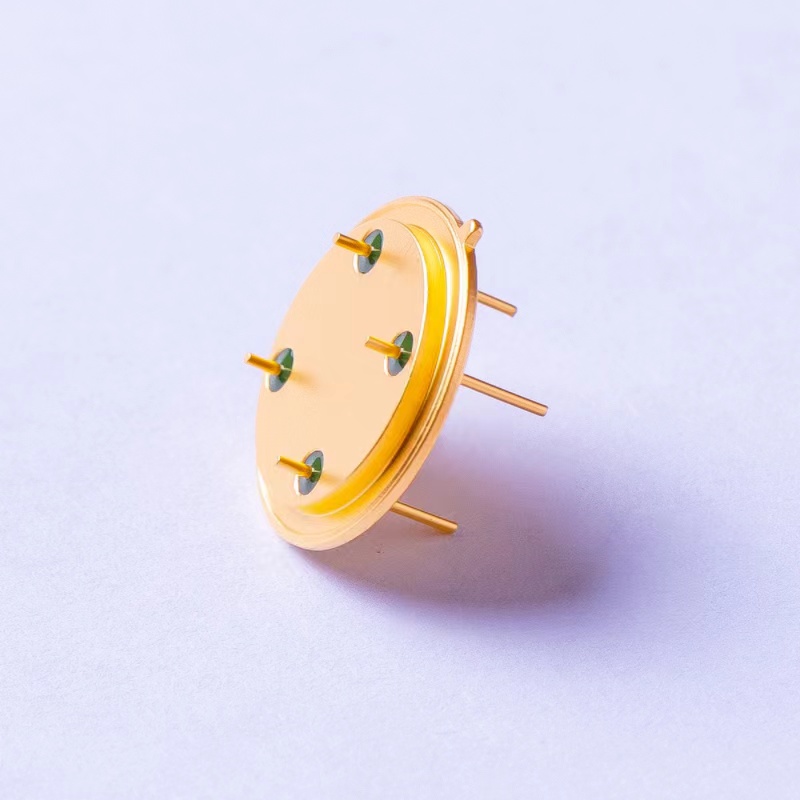

glass to metal seal, stainless steel housing, Alloy 50 leads with Au finishing.

  Housing Leads  Insulators
Materials   316L stainless steel 4J50   Elan #13
Plating  Polished Ni: 4~24μm,     Au1.3~5.7μm
Diameter    Φ25.45mm+0-0.05, H:3mm
Insulation resistance   ≥1× 1010 Ω (500V DC)
Hermeticity   ≤  1 x 10-3  Pa * cm/s
Note Unspecified tolerances are ±0.1mm

With over two decades of experience helping clients move from prototype to commercialization, Hermetica’s customized engineering service offers immense value at the R&D stage. From material selection to pin configuration to sealing techniques, our team of engineers can provide a variety of solutions to help you overcome the technical obstacles our clients face in the early phases of designing a new product. We can work from your drawings or ours while pinpointing ways to lower costs and improve functionality.
